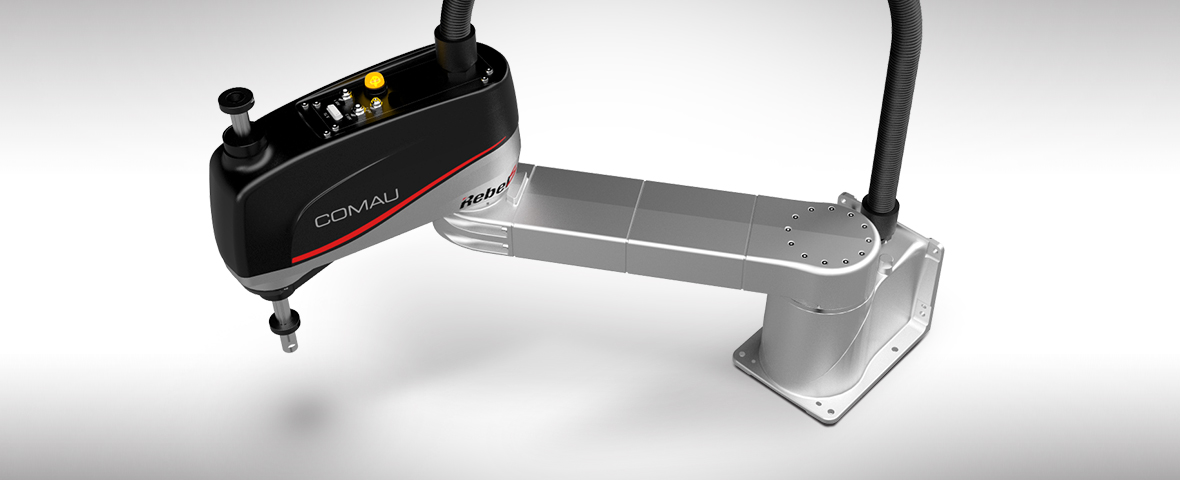

Rebel S6-0.75

Rebel S6-0.75

Um conceito Modular

Família ​Rebel S

Um conceito modular para dar resposta à crescente procura do mercado, no setor de pequenos robôs,  por alta velocidade em aplicações “Pick&Place” e na indústria em geral.

Categoria: Etiqueta:

Especificações Técnicas Rebel-S6-0.75

Robot Type SCARA
Axes 4
Payload (kg) 6
Horizontal Reach (Radius) (mm) 750
Vertical Reach (Z-Stroke) (mm) 200
Repeatability (X-Y) (mm) 0.03
Mounting Position Base / Wall
Internal User Wiring Electrical 25 pin-to-pin
Internal User Wiring Pneumatical (mm) 1 x 4 mm & 2 x 6
Available Protection Classes: IP Class IP10 (IP54 Option)
Available Protection Classes: ISO Class ISO
Outer Diameter of Ball-Screw-Spline (mm) 20
Inner Diameter of Ball-Screw-Spline (mm) 14
Z Axis Down Force (long-time) (N) 160
Robot Weight (kg) 20
Environmental Conditions: Temperature (ºC) +5 – +45
Environmental Conditions: Relative humidity 5 – 95% (without condensation)
Applicable Controller R1C-4

Especificações Técnicas Rebel S6 – 0.75c

Robot Type SCARA
Axes 4
Payload (kg) 6
Horizontal Reach (Radius) (mm) 750
Vertical Reach (Z-Stroke) (mm) 200
Repeatability (X-Y) (mm) 0.03
Mounting Position Ceiling / Wall
Internal User Wiring Electrical 25 pin-to-pin
Internal User Wiring Pneumatical (mm) 1 x 4 & 2 x 6
Available Protection Classes: IP Class IP10 (IP54 Option)
Available Protection Classes: ISO Class ISO
Outer Diameter of Ball-Screw-Spline (mm) 20
Inner Diameter of Ball-Screw-Spline (mm) 14
Z Axis Down Force (long-time) (N) 160
Robot Weight (kg) 20
Environmental Conditions: Temperature (ºC) +5 – +45
Environmental Conditions: Relative humidity 5 – 95% (without condensation)
Controlador aplicável R1C-4

  • Comau_Rebel-S6-0.75_WorkingAreas – Download

  • Comau_Rebel-S6-0.75_2D-AUTOCAD-DWG – Download
  • Comau_Rebel-S6-0.75_3D_ACIS_SAT – Download
  • Comau_Rebel-S6-0.75_3D_PARASOLID – Download
  • Comau_Rebel-S6-0.75_3D_SOLIDWORKS – Download
  • Comau_Rebel-S6-0.75_3D_STEP – Download

Rebel S6-0.75 – O que consegue fazer

Manuseio, Montagem, Tendência para Máquina

Rebel-S6-0.75 trabalha com

Controladores: R1C-4

Carga útil

Pequena 0-16 KG

Alcance

até 1000 mm

Aplicação

Montagem

Indústria

Automativo, Eletrónica, Plástico

Gama

Rebel
